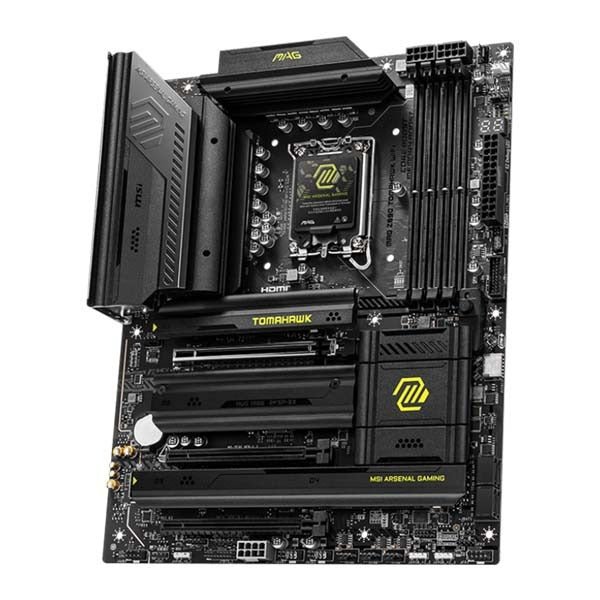

MSI Motherboard MAG Z890 Tomahawk Wi-Fi 7 Motherboard Supporting DDR5 with ATX-S Standard – Black

لوحة أم إنتل زد 890 بحجم ايه تي إكس لمقبس 1851 مصممة لمعالجات إنتل كور ألترا الجيل 2 المكتبية وتجميعات الكمبيوتر عالية الأداء.
It supports 4 DDR5 memory slots with a capacity of up to 256 GB, along with PCI Express 5.0 graphics support and 4 M.2 slots for high-speed NVMe storage.
With Wi-Fi 7, Bluetooth 5.4, Intel Killer 5 Gigabit Ethernet, two Thunderbolt 4 Type-C ports, and an HDMI 2.1 output, it delivers powerful connectivity for gaming, content creation, and workstations.

Technical Specifications

General Specifications

The Slide
Intel Z890

Processor Socket
1851

Processor Support
2nd Generation Intel Core Ultra Desktop Processors

Panel Size
ATX

Dimensions
244 × 305 mm

Color
Black

Memory Support

Cracks in Memory
4 × DDR5

Memory Architecture
Two channels

Maximum memory capacity
Up to 256 gigabytes

Support for memory speed breaking
Intel 3.0

Enhanced Memory Support
Yes

Expansion Cracks

Cracks in PCI Express
3 × PCI Express ×16 Total

Part One
Up to PCI Express 5.0 ×16 from the processor

Part Two
Up to PCI Express 4.0 ×4 from the chipset

Part Three
Up to PCI Express 4.0 ×4 from the chipset

Storage Support

M2 Ports
4 × m²

First Outlet
PCI Express 5.0 ×4, 2260 / 2280, from the processor

The Second Outlet
PCI Express 4.0 ×4, 2260 / 2280 / 22110, from the processor

The Third Outlet
PCI Express 4.0 ×4, 2242 / 2260 / 2280, from the chip

The Fourth Port
PCI Express 4.0 ×4 or SATA, 2242 / 2260 / 2280, from the chip

Sata
4 × SATA 6 Gbps

Support Ride
Ride 0, 1, 5, 10 on SATA and NVMe

Graphics and Display Outputs

HDMI
HDMI 2.1 up to 4K120 or 8K60

Thunderbolt Presentation
2 × Thunderbolt 4 Type-C with DisplayPort 2.1 via USB-C

Video Output Requirements
Requires a processor with integrated graphics

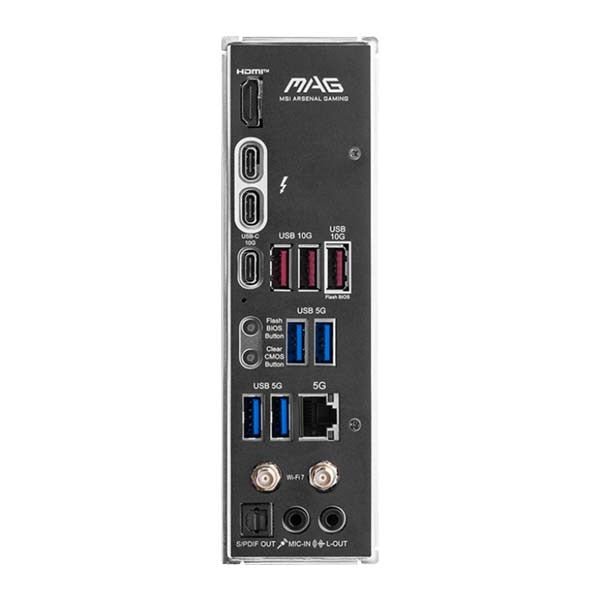

Rear Ports

Thunderbolt 4
2 × USB-C

USB-I at 10 Gbps
3 ports

USB-C at 10 Gbps
1 port

USB-I at 5 Gbps
4 ports

The Network
1 × 5 Gigabits

Wi-Fi Antenna
2 connectors

Sound
2 audio ports + 1 optical port

Buttons
BIOS Update Button + Reset Button

Communication and Audio

Network Controller
Intel Keller 5 Gigabit

Wi-Fi
Wi-Fi 7

Bluetooth
Bluetooth 5.4

Audio Clip
1,220 riyals

Audio Channels
7.1 High-Definition Audio Channel

Digital Audio Output
Optical Port

Internal Ports and Power

USB-C on the front
20 Gbps with a power consumption of 27 watts

USB port with a speed of 5 Gbps
1 head adds 2 ports

USB 2.0 Connectors
2 heads add 4 ports

Primary Energy
24 ATX Pins

Processor Power
2 × 8-pin processor socket

Extra Energy
1 × 8-pin PCI Express connector

Fan Heads
1 × processor, 1 × pump, 6 × systems

Lighting Heads
1 × 4-pin lighting connector, 3 × 3-pin addressable lighting connector (Generation 2)

Diagnosis
Smart Diagnostic Lights + Digital Diagnostic Display

Key Features

Support for the 1851 socket for 2nd-generation Intel Core Ultra processors
Supports dual-channel DDR5 memory up to 256 GB
PCI Express 5.0 ×16 Slot for Graphics Cards
4 M.2 slots, including 1 × PCIe Express 5.0 ×4
Supports Wi-Fi 7 and Bluetooth 5.4
Intel Killer 5 Gigabit Network Card
2 × Thunderbolt 4 Type-C with DisplayPort 2.1
HDMI 2.1 Video Output
Enhance Your Audio with the Realtek 1220 and an Optical Port
Front-facing USB-C port with a speed of 20 Gbps and 27-watt power delivery
BIOS Update Button and Reset Settings Button
Pre-installed Outlet Shield
M2 Cooling Shield and M2 Clamp
Easily edit PCI Express to remove the graphics card
Extended heat sinks with a high-quality plate and two layers of copper

User Experience

Building a Gaming PC or Modern Content Creation PC with 2nd Gen Intel Core Ultra Processors
Installation of High-Speed DDR5 Memory with Support for Large Capacities
Running New Graphics Cards via PCI Express 5.0
Add several NVMe storage drives for games and large files
Enjoy a Faster Wireless Network with Wi-Fi 7
Connect high-speed external devices via Thunderbolt 4
5 Gbps Wired Connection
Easier Upgrades and Maintenance with Smart Diagnostic Features

Contents of the Box

Intel Z890 Motherboard in ATX Form Factor
Pre-installed Outlet Shield
Wi-Fi Antenna
SATA Cable
M2 Installation Accessories
User Guide
